Description
The AnyTone AT-D578UV PRO is a professional-grade dual-band mobile transceiver that delivers uncompromising performance for both DMR and FM analog operation. Covering 136–174 MHz (VHF) and 408–470 MHz (UHF), it supports wideband full-duplex receive (VV/UU/V+U), allowing you to listen to two frequencies simultaneously. Each side has independent volume control for total operating flexibility.
With selectable transmit power levels—50/25/10/1W on VHF and 45/25/10/1W on UHF—the D578UV PRO ensures consistent, reliable communication whether you’re working locally or reaching out to distant repeaters.
Integrated Bluetooth for use with wireless accessories such as the BT01 Bluetooth Microphone (fully supported on Convergent Radio–supplied units)
1.77" color TFT display with customizable themes for clear visibility in all conditions
The AnyTone AT-D578UV PRO combines rugged construction, intelligent design, and modern connectivity. Whether mounted in a vehicle or used as a fixed station, it’s engineered to perform reliably in demanding environments.
All D578UV PRO radios sold by Convergent Radio are tested for full compatibility with the BT01 Bluetooth Microphone and are preloaded with the latest firmware for optimal performance.
Specifications
Frequency Ranges: 136-174MHz, 400-480MHz
- Wide Band Full Duplex Receive Capabilities: VV/UU/V+U
- Channel Spacing: 25KHz (Wideband) 12.5KHz (Narrow Band)
- Operating Voltage: 13.8VDC
Selectable Output Power
- VHF: 50/25/10/1W
- UHF: 45/25/10/1W
Roaming: Built-in
GPS: Built-in
Bluetooth: Built-in
Speaker: Single or Dual Output
Audio Power Output: 2W/8-Ohm
Additional Memory: Large 2G memory for Future Enhancements
Color TFT Display: 1.77-inch, with Selectable Single or Dual Channel Display
Auto RX Mode: Receiver Auto-Selects to Incoming Digital or Analog Signal
DMR Capability: Support for both Tier I and Tier II operation
Memory Channels: 4,000
DMR talk Groups: 10,000
Quiet Tones: CTCSS/DCS tone squelch with split tone and custom tone capability
Zones: 250 Zones – Up to 250 Channels per Zone
Zone Select: User Selectable from Keypad
Digital Monitor: Monitor One or Two Timeslots
Cross-band Repeat: Included
Operating Temperature: 14 to 131° Fahrenheit (-10 to +55C)
Standard Package Includes
- AnyTone Tech AT-D578UV PRO Mobile Transceiver

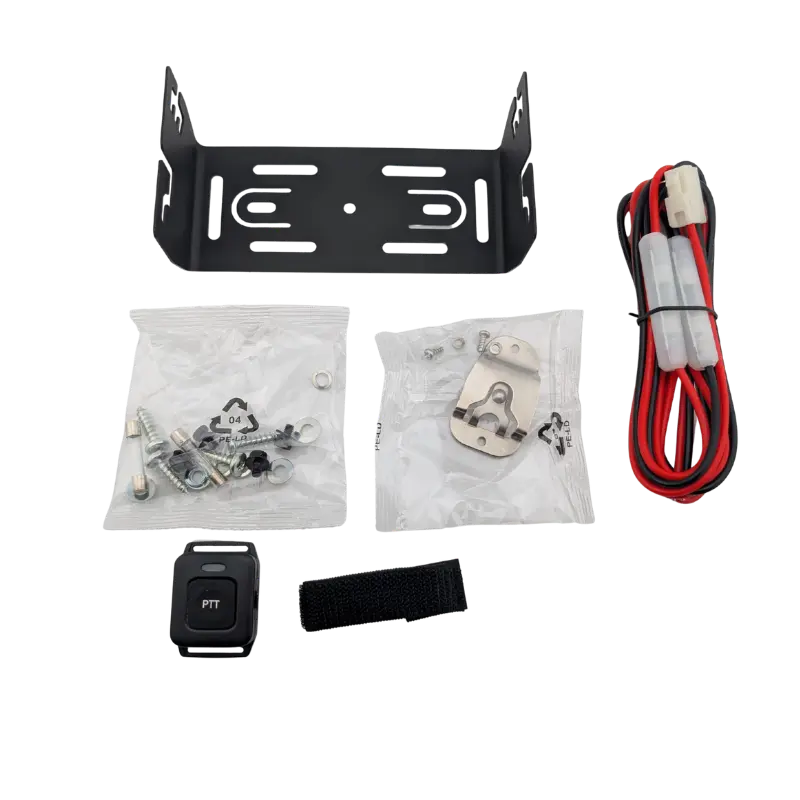

- Mounting Bracket and Hardware

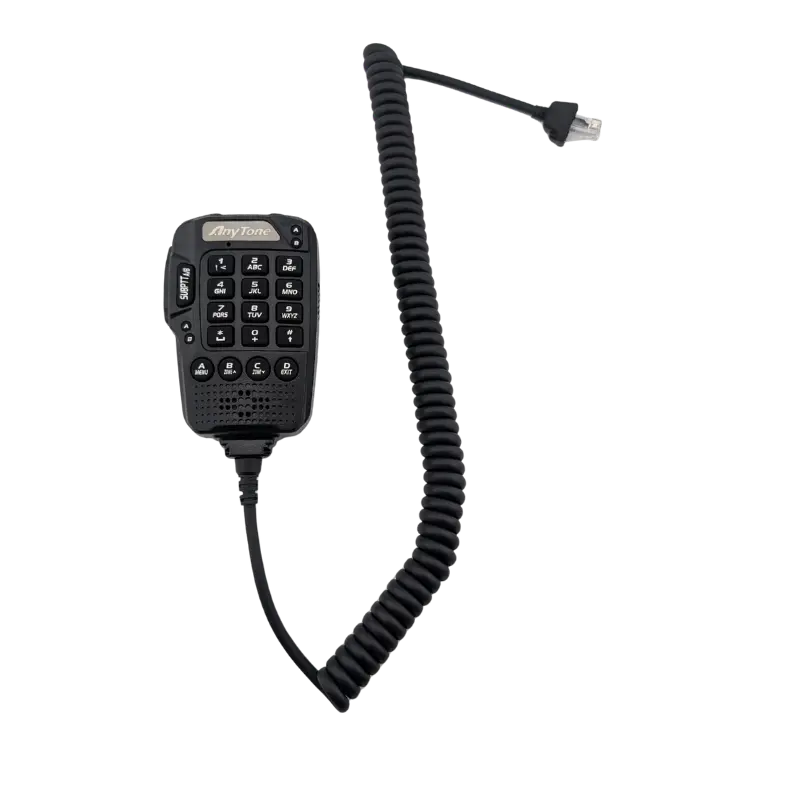

- Remote Control Hand Microphone w/ keypad
- Bluetooth PTT button and charging cable
- 6-foot Fused DC power cable
- Compact GPS Antenna
- User Manual
