Description

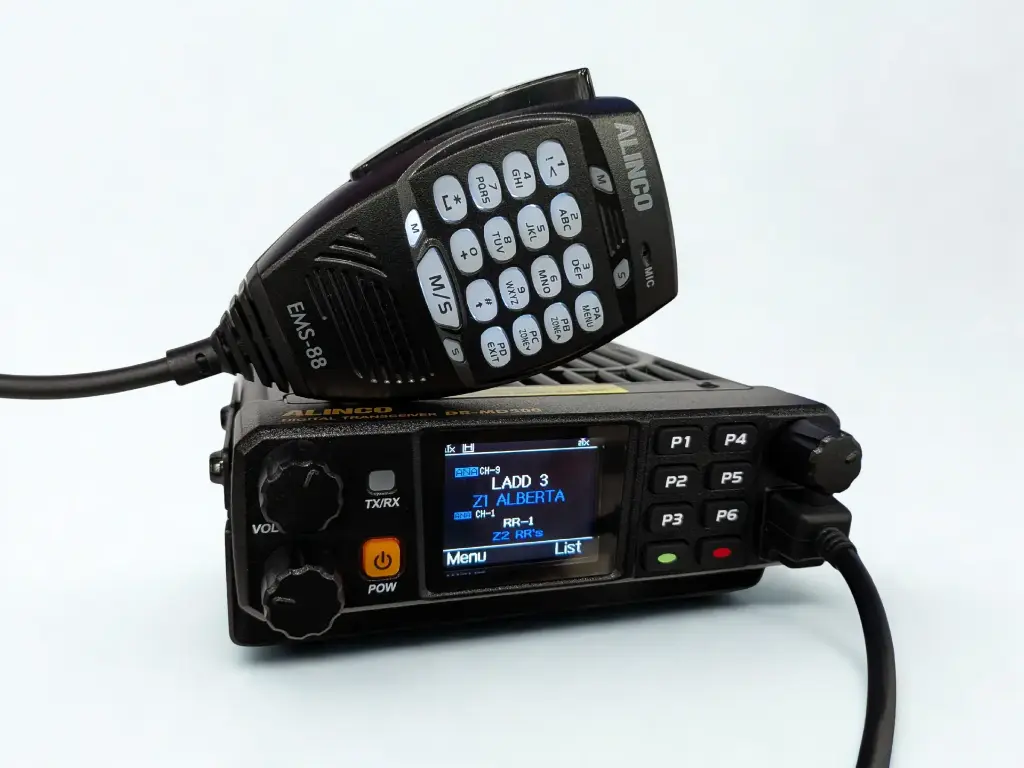

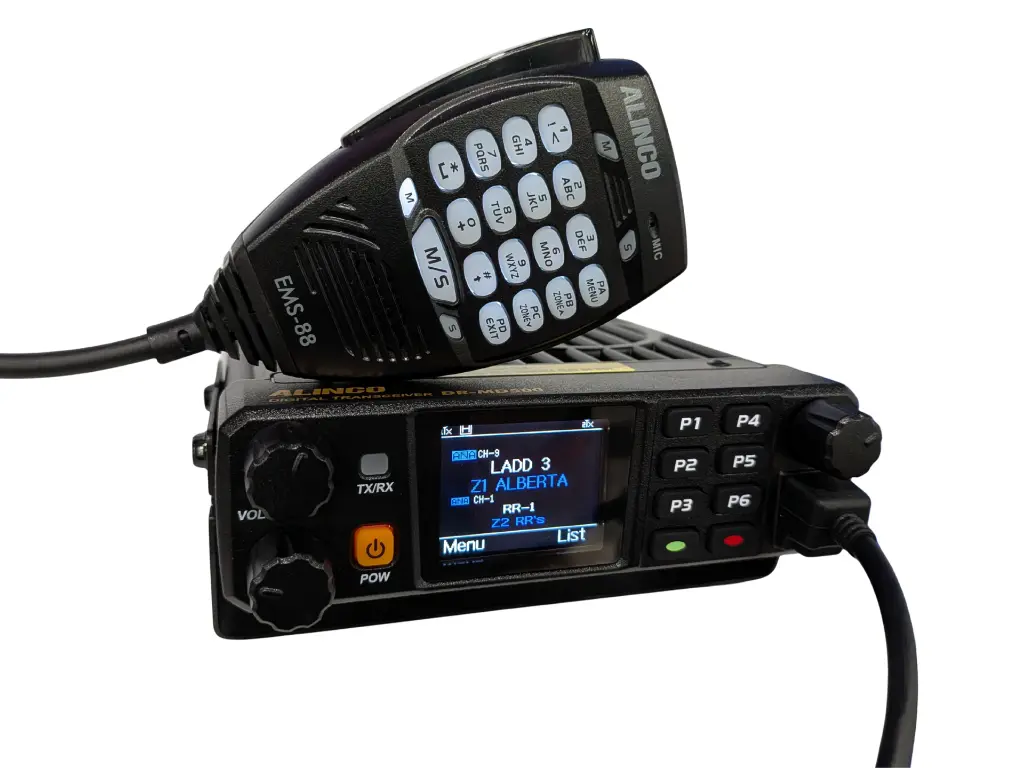

The Alinco DR-MD500T is a powerful dual-band mobile radio designed for businesses that need dependable communications every day. Whether you're operating in transportation, construction, oil and gas, agriculture, security, or municipal services, the DR-MD500T delivers professional-grade performance with both DMR digital and FM analog operation.
With support for VHF (136 to 174 MHz) and UHF (400 to 480 MHz), the radio can be programmed to suit virtually any licensed commercial radio system. Its 4,000-channel capacity makes it ideal for organizations with multiple sites, departments, or repeater networks.
One of the DR-MD500T's biggest advantages is its dual receive capability, allowing you to monitor two channels simultaneously. You can easily switch between the active and sub channels, ensuring you never miss important traffic.
Built around a rugged commercial platform, the DR-MD500T combines simple operation with excellent audio quality and reliable RF performance. The included keypad microphone provides convenient access to channel selection and radio functions without reaching for the radio itself.
Every radio supplied by Convergent Radio is professionally programmed for your licensed radio system, updated with the latest available firmware, fully tested, and ready to install.
Commercial Radio Notice
The Alinco DR-MD500T is a commercial land mobile radio intended for licensed radio systems. This is not the amateur (ham radio) version of the DR-MD500. Radios are dealer programmed only and are not user programmable. Programming, channel access, and system configuration are restricted to authorized dealers. Operation requires a valid ISED radio licence. .
Specifications
Frequency Range
- VHF: 136 to 174 MHz
- UHF: 403 to 470 MHz
Transmit Power
- VHF: 50 / 25 / 10 W
- UHF: 45 / 25 / 10 W
Channel Capacity
- 4,000 Channels
Zones
- Up to 250
Operating Modes
- DMR Tier I
- DMR Tier II
- Analog FM
Dual Receive
- Simultaneous monitoring of two channels
Channel Spacing
- 12.5 kHz
- 25 kHz
Operating Voltage
- 13.8 VDC
Audio Output
- 2 W
Operating Temperature
- -10°C to +55°C

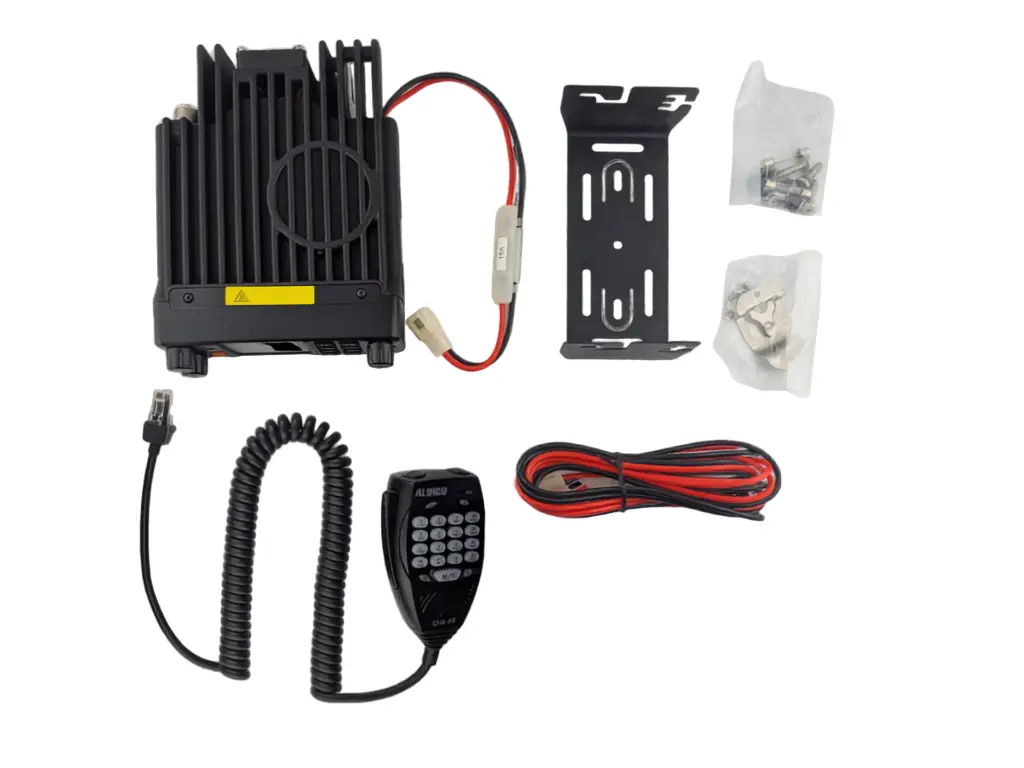

Standard Package Includes
- Alinco DR-MD500T Mobile Radio

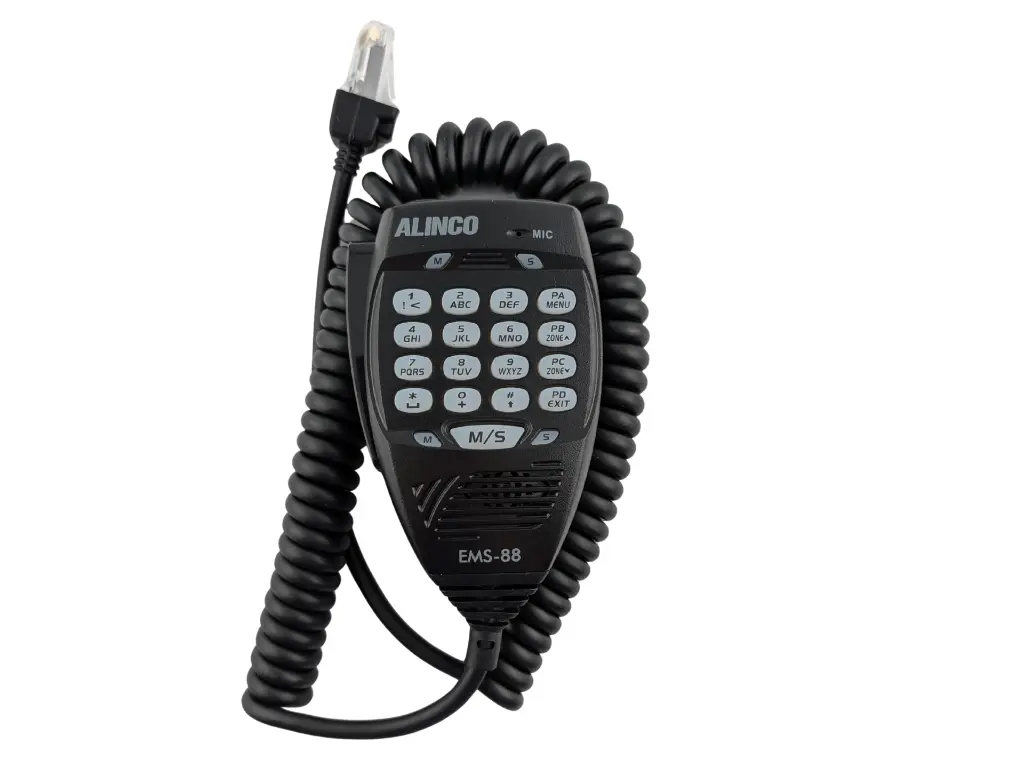

- DTMF Keypad Hand Microphone
- Mobile Mounting Bracket
- Mounting Hardware

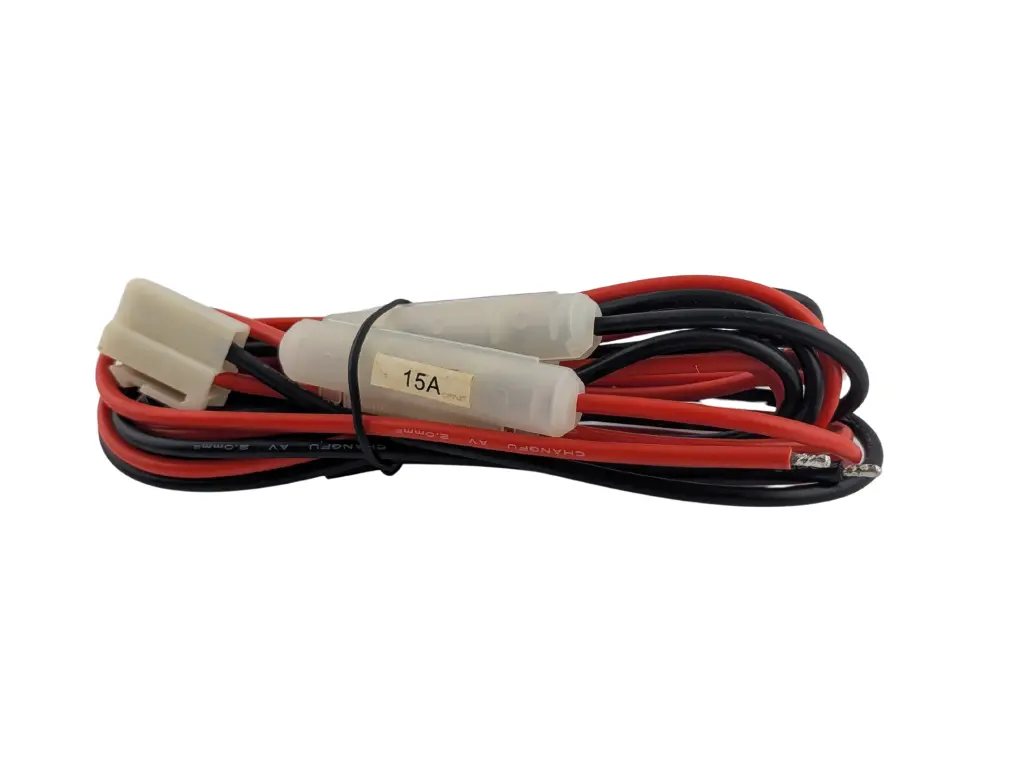

- Fused DC Power Cable
- User Manual
Commercial Model Information
The Alinco DR-MD500T supplied by Convergent Radio is configured as a commercial land mobile radio for use on licensed business radio systems. While radios carrying the DR-MD500 name are also available for amateur (ham) radio use, the version we supply is intended exclusively for commercial applications.
Each radio is professionally programmed for your licensed radio system, dealer-configured, and tested prior to delivery. User programming is restricted to ensure compliance with commercial radio system requirements and to maintain the integrity of your communications network.
