SND RCV SR-M9X VHF PoC Dual Mode Mobile Radio

SND RCV SR-M9X VHF PoC Dual Mode Mobile Radio

https://www.convergentradio.com/web/image/product.template/17/image_1920?unique=e3cd8a5

$ 449.00 449.0 CAD $ 449.00 Tax Excluded

$ 449.00 Tax Excluded

Not Available For Sale

This combination does not exist.

Contact Us

Terms and Conditions
30 Day Guarantee
Fast Shipping
Free Shipping over $100

Share

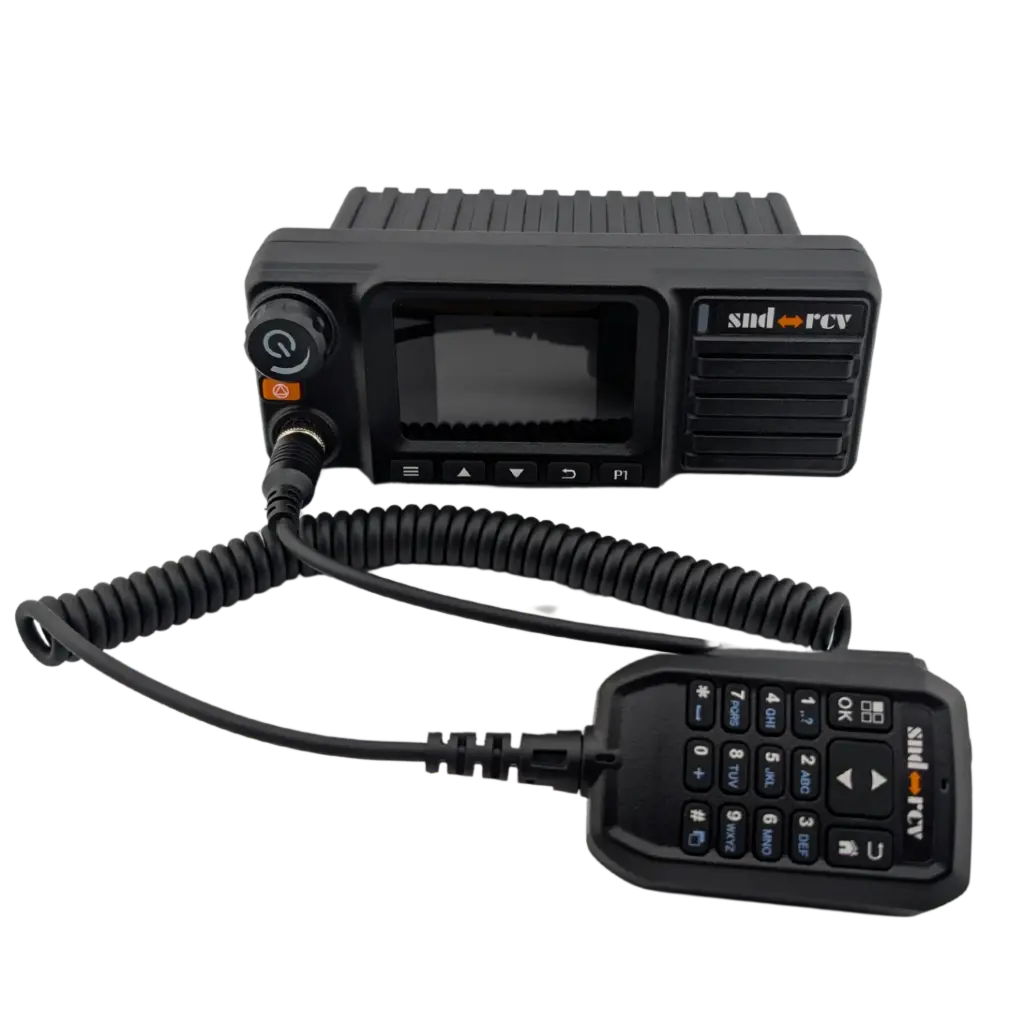

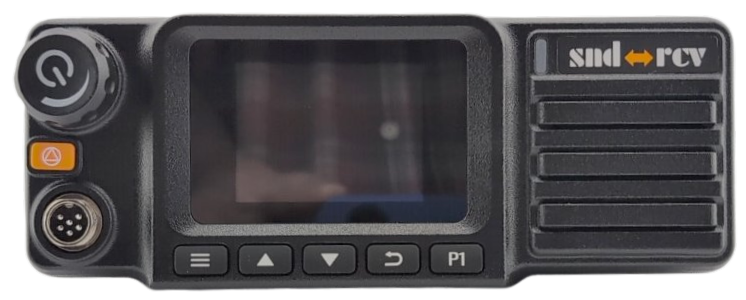

SND RCV SR-M9X – Dual Mode Mobile Radio (VHF + PoC)


The SR-M9X is a rugged, purpose-built Dual Mode mobile radio that combines reliable VHF analog communication with modern Push-to-Talk over Cellular (PoC) functionality. Designed for demanding environments like transportation, security, and field service, the SR-M9X ensures uninterrupted communication whether you're operating locally or over a wide-area LTE network.

Key Features:

  • Dual Mode Operation: Supports both UHF analog two-way radio and LTE PoC for maximum flexibility
  • Nationwide Coverage: Operates over 4G LTE networks for long-range communication
  • High-Output Audio: Delivers loud, clear voice even in noisy vehicles or work zones
  • Simple & Reliable: Easy-to-use interface powered by a stable Linux-based system
  • Durable Build: Designed for in-vehicle mounting with a rugged, compact form factor
  • Optional GPS Tracking: Supports location services for fleet and dispatch monitoring

Ideal For:

  • Transportation and logistics
  • Public safety and security
  • Utility and maintenance crews
  • Emergency and backup communications

The SR-M9X offers the dependability of analog with the range and simplicity of PoC—making it the perfect bridge between traditional radio and modern LTE communication.



Learn more


Specifications

Specifications

Model Number:
SR-M9X VHF
Dimensions:190mm x 135mm x 72mm
Weight:940g
Working Temperature:-30°C to +75°C
Ingress Protection:IP54


Working Voltage:
12 -24 Volts
Working Current:500mA @ LTE
220mA @ WCDMA
(Idle Current) 150mA @ Analog VHF
(Peak Current) 3A @ Analog VHF
Audio Output:3W


LTE FDD:
Band 2: 1900 MHz
Band 4: 1700 MHz
Band 5: 850 MHz
Band 12: 700MHz
Band 17: 700 MHz
WCDMA:
Band 2: 1900MHz
Band 5: 850MHz
Maximum Output:LTE:23±dBm (Power Class 3)
WCDMA:24 +1/-3dBm (Power Class 3)
GSM900:33±2dBm (Power Class 4)
GSM1800:30±2dBm (Power Class 1)
VHF: <= 10W
Receiving Sensitivity:LTE FDD ≤-100;106dBm;
WCDMA 900:≤-108dBm;
WCDMA 2100:≤-109dBm;
GSM900 / 1800:≤-106dBm;
VHF: <= -122dBm @ 12db SINAD
GPS:GPS Positioning, 1.57542GHz
Sensitivity:Catch –144dBm, Track –159dBm
Data Speed Rate:LTE FDD -Uplink 50 Mbps / Downlink 150 Mbps
WCDMA -Uplink 5.76 Mbps / Downlink 42 Mbps
Protocol:Support embedded TCP & UDP Protocols Support
Protocols PAP and CHAP used for PPP connnection
3GPP TS27.005, 27.007


Frequency Range:UHF: 136-174 MHz
Channel Number:199
Channel Space:25/12.5KHz
Frequency Stability:±2.5 ppm

Band Width:Wide / Narrow
Transmit Power:10W
Modulation:16KΦF3E / 11KΦF3E
Spurious Emissions:≤-36dBm / ≤-36dBm
Adjacent Channel Power:≥70dB / ≥60dB
(12db SINAD):0.20μV / o.20μV
Adjacent Channel Selectivity:≥60dB / ≥55dB
Intermodulation Rejection:≥65dB / ≥60dB
Spurious Response:≥65dB / ≥65dB

Push-to-Talk over Cellular (PoC) Service Requirement

Send Receive PoC radios do not operate as standalone devices.

All PoC devices require:

  • An active cellular data connection
  • An active SND RCV PoC application subscription to access the cloud-based servers for call routing, group management, and device control

Without these services, the device will power on but will not communicate.
