Specifications

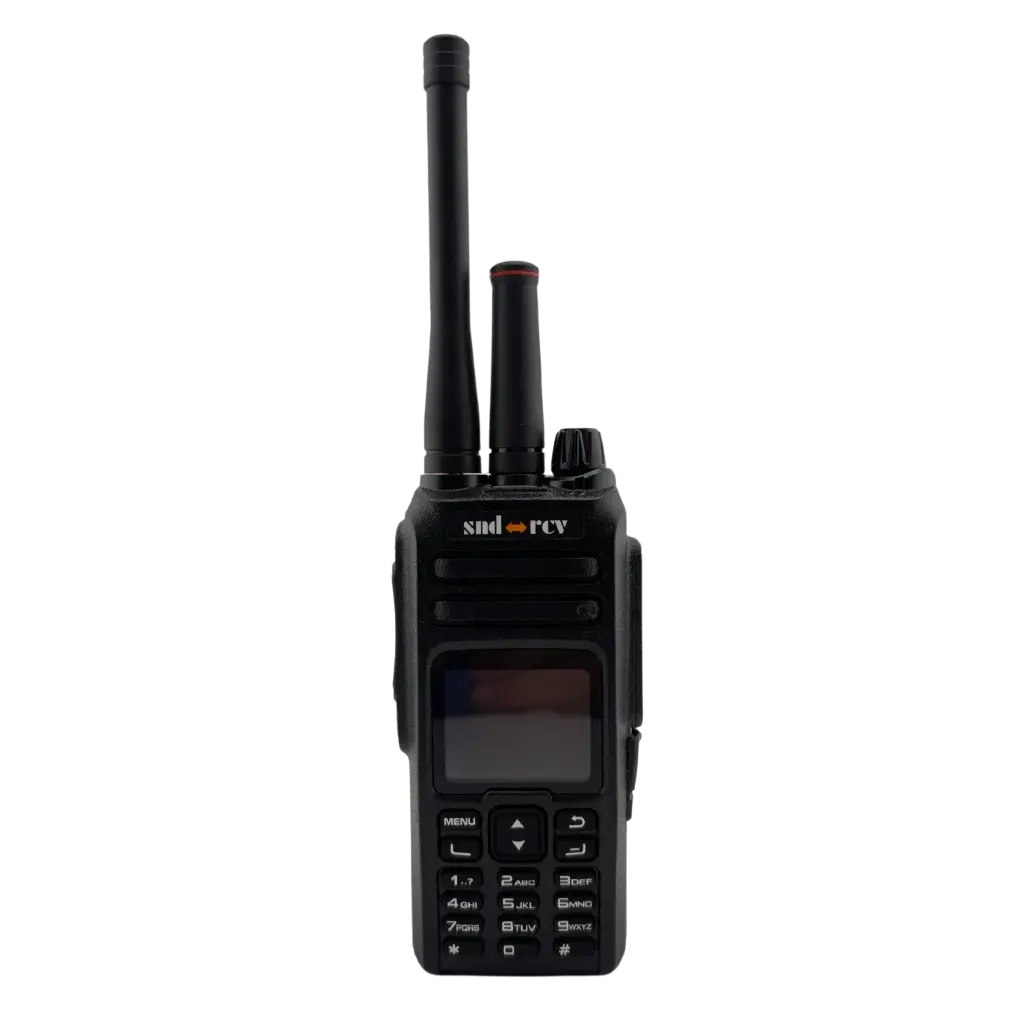

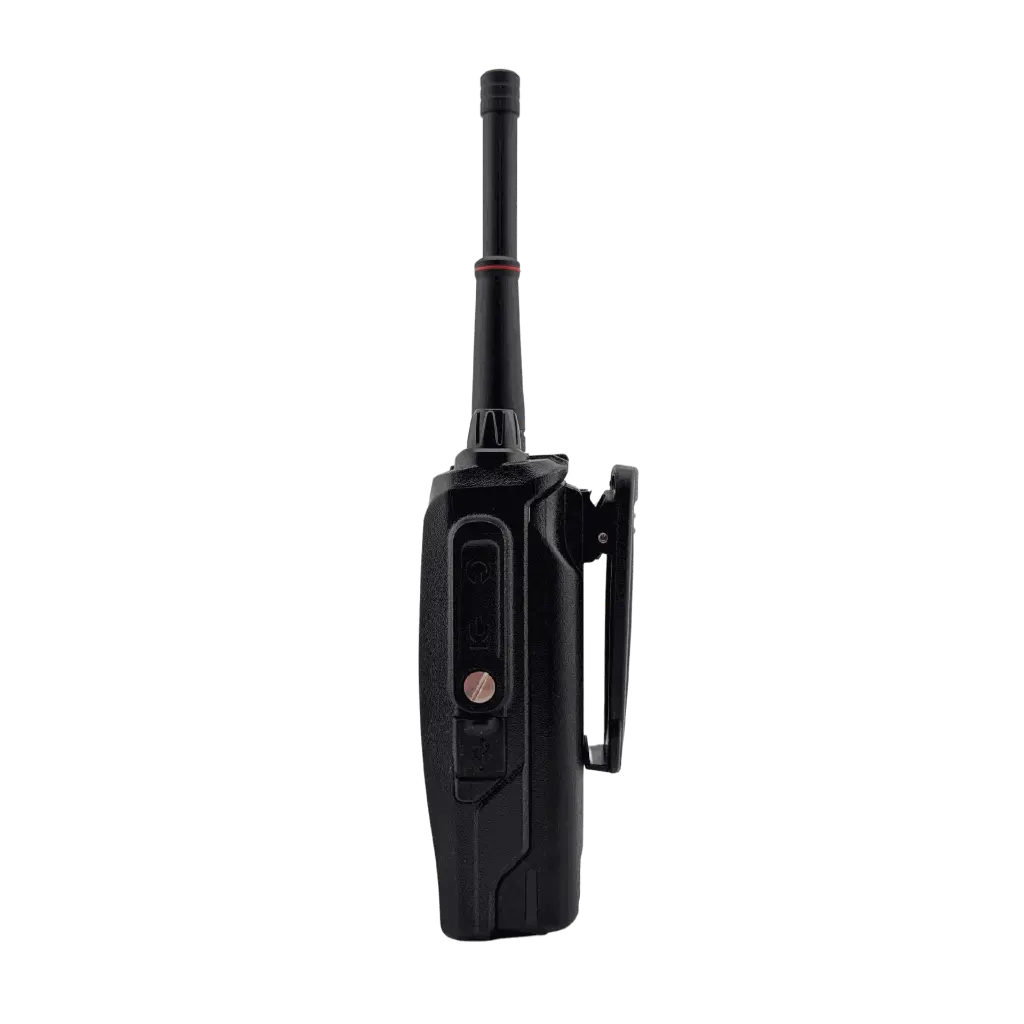

| Model Number: | SR-P6X UHF |
| Dimensions: | 135mm x 58mm x 38mm |
| Weight: | 320g |
| Working Temperature: | -30°C to +75°C |
| Ingress Protection: | IP54 |
| Working Voltage: | 6.2v ~ 8.25v (standard 7.6v) |
| Working Current: | 500mA @ LTE 220mA @ WCDMA 1500mA @ Analog UHF |
| Peak Current: | 1.8A |
| Audio Output: | 1W |
| LTE FDD: | Band 2: 1900 MHz Band 4: 1700 MHz Band 5: 850 MHz Band 12: 700MHz Band 17: 700 MHz |
| WCDMA: | Band 2: 1900MHz Band 5: 850MHz |
| Maximum Output: | LTE:23±dBm (Power Class 3) WCDMA:24 +1/-3dBm (Power Class 3) GSM900:33±2dBm (Power Class 4) GSM1800:30±2dBm (Power Class 1) UHF: <= 5W |
| Receiving Sensitivity: | LTE FDD ≤-100;106dBm; WCDMA 900:≤-108dBm; WCDMA 2100:≤-109dBm; GSM900 / 1800:≤-106dBm; VHF: <= -122dBm @ 12db SINAD |
| GPS: | GPS Positioning, 1.57542GHz |
| Sensitivity: | Catch –144dBm, Track –159dBm |
| Data Speed Rate: | LTE FDD -Uplink 50 Mbps / Downlink 150 Mbps WCDMA -Uplink 5.76 Mbps / Downlink 42 Mbps |
| Protocol: | Support embedded TCP & UDP Protocols Support Protocols PAP and CHAP used for PPP connnection 3GPP TS27.005, 27.007 |
| Frequency Range: | UHF: 403-480MHz |
| Channel Number: | 199 |
| Channel Space: | 25/12.5KHz |
| Frequency Stability: | ±2.5 ppm |
| Band Width: | Wide / Narrow |
| Transmit Power: | 5W |
| Modulation: | 16KΦF3E / 11KΦF3E |
| Spurious Emissions: | ≤-36dBm / ≤-36dBm |
| Adjacent Channel Power: | ≥70dB / ≥60dB |
| (12db SINAD): | 0.20μV / o.20μV |
| Adjacent Channel Selectivity: | ≥60dB / ≥55dB |
| Intermodulation Rejection: | ≥65dB / ≥60dB |
| Spurious Response: | ≥65dB / ≥65dB |
